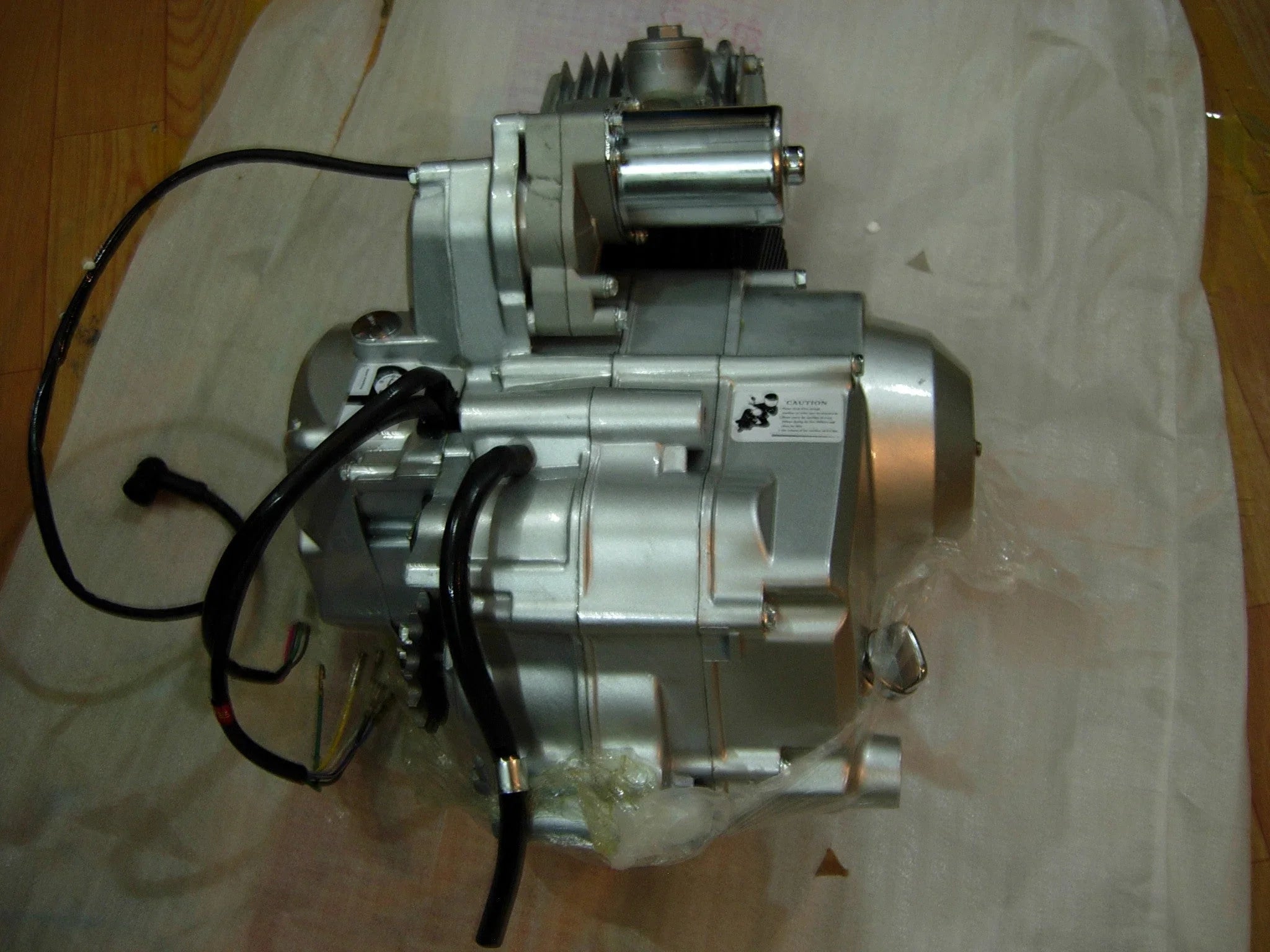

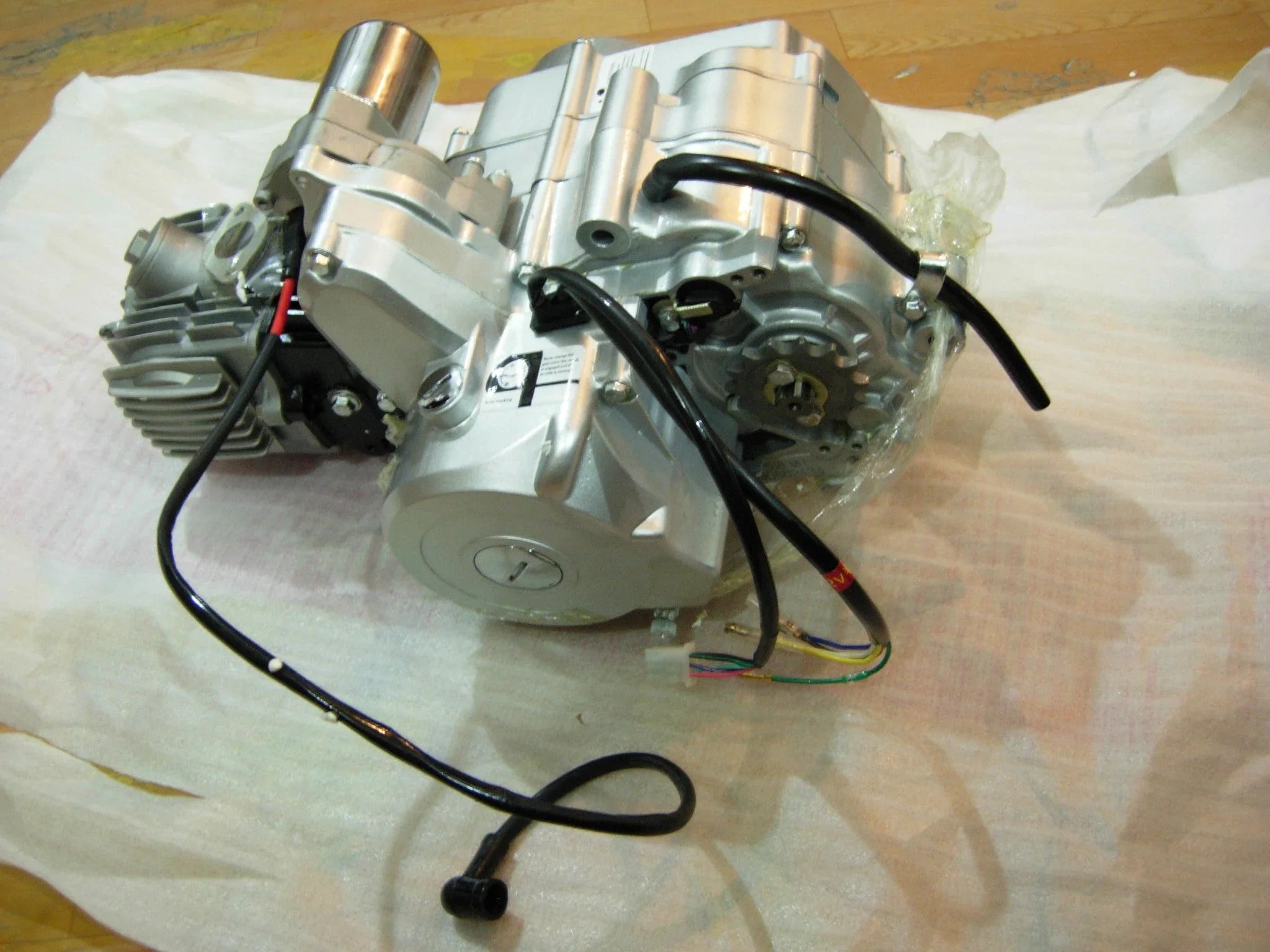

110CC 3 Speed Semi Auto with Reverse Engine horizontal honda style 110cc

110CC 3-Speed Semi-Automatic Engine for Dirt Bikes

This 110cc horizontal engine, designed for dirt bike parts, offers a reliable 1-cylinder, 4-stroke, air-cooled configuration. It features a convenient semi-automatic transmission with reverse, electric and kick start options, and an integrated CDI ignition system for dependable performance.

• 110cc Displacement: Delivers robust power and torque for versatile dirt bike applications.
• 3-Speed Semi-Automatic Transmission with Reverse: Provides smooth gear changes and enhanced maneuverability, especially in tight spots.
• Electric & Kick Start System: Ensures quick and easy ignition, offering backup reliability.
• Air-Cooled 4-Stroke Design: Promotes efficient operation and consistent temperature management for longevity.
• CDI Ignition System: Guarantees precise spark timing for optimal combustion and performance.

Compared to earlier models or less integrated engine units, this assembly simplifies installation and ensures component synergy. The inclusion of a reverse gear significantly enhances usability for mechanics, riders needing to back out of tricky situations, or for utility purposes, setting it apart from standard transmissions that solely focus on forward gears.

Key Technical Advantages: Technology and Performance

• Maximum Power Output: Achieves 5.0 kW at 7500 RPM, providing ample power for acceleration and maintaining speed.
• Peak Torque Delivery: Generates 6.5 N·m at 5000 RPM ± 500, offering strong pulling power for off-road demands.
• Efficient Fuel Consumption: Boasts a consumption rate of ≤ 367 g/(kW·h), indicating good fuel economy for its class.
• Compact Dimensions: Features a cylinder bore of 52.4mm and stroke of 49.5mm, with an operating cubage of 106.7ml, optimized for horizontal mounting.
• Durable Construction: Incorporates a 9.0:1 compression ratio and pressure splashing lubrication for enhanced engine life and reliability.
